2023 Harley-Davidson RH1250S - Sportster® S
2023 Harley-Davidson® Sportster® S
Sportster S is the first chapter of a whole new book of the Sportster saga. A legacy born in 1957 that outperformed the competition is now rebuilt to blow away the standards of today.
Features may include:
THIS IS THE RIGHT BIKE FOR- Riders who desire top-of-the-line performance and stunning style
- Aggressive riding with sport bike agility and handling
- Making a statement and standing out from the crowd

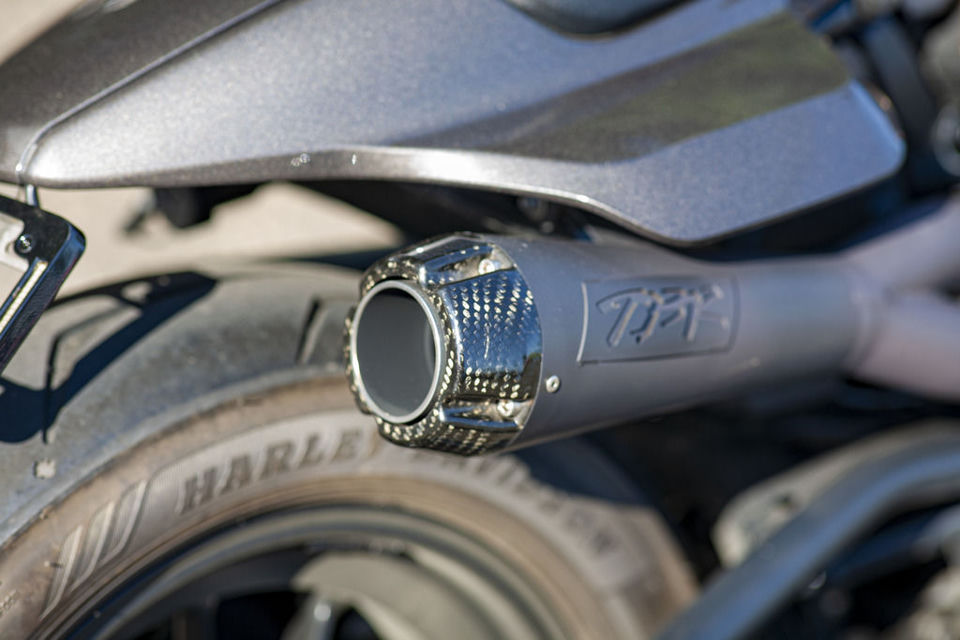

- HIGH EXHAUST MOUNT
Inspired by the glory days of H-D flat-track racing, the pipes are crafted from corrosion-resistant 304-series stainless steel and engineered to deflect exhaust heat away from the rider’s legs and tail section.
- INSTRUMENTATION
Everything you need to know is housed in a Bluetooth-equipped, 4” round thin-film transistor LCD display: digital gauges, indicators, ride modes, and turn-by-turn navigation with the Harley-Davidson app. All functions are accessed via buttons on the left- and right-hand controls.
- CHASSIS
The Revolution Max 1250T is a structural component of the motorcycle chassis, eliminating a traditional frame — which significantly reduces overall weight and keeps handling precise. This is performance you can feel, with the center of gravity low and the chassis super rigid.
- Sale Price$11,499
- LocationHillsboro, Oregon
- ConditionPre-Owned
- Stock Number306619
- Year2023
- MakeHarley-Davidson
- ModelRH1250S - Sportster® S
- TypeMotorcycle
- CategorySport
- VIN1HD1ZC411PB306619
- Mileage3,223
- StatusIn Stock
| Year | 2023 |
|---|---|
| Manufacturer | Harley-Davidson® |
| Model Name | RH1250S Sportster® S |
| Trim Name | Base |
| Generic Type (Primary) | Sport |
| Vivid Black | $16,399 |
|---|---|
| Color Option | $16,849 |
| ABS Option | Standard |
| Security Option | Standard |
| Cruise Control Option | Standard |
| California Emissions | $200 |
| Freight | $700 |

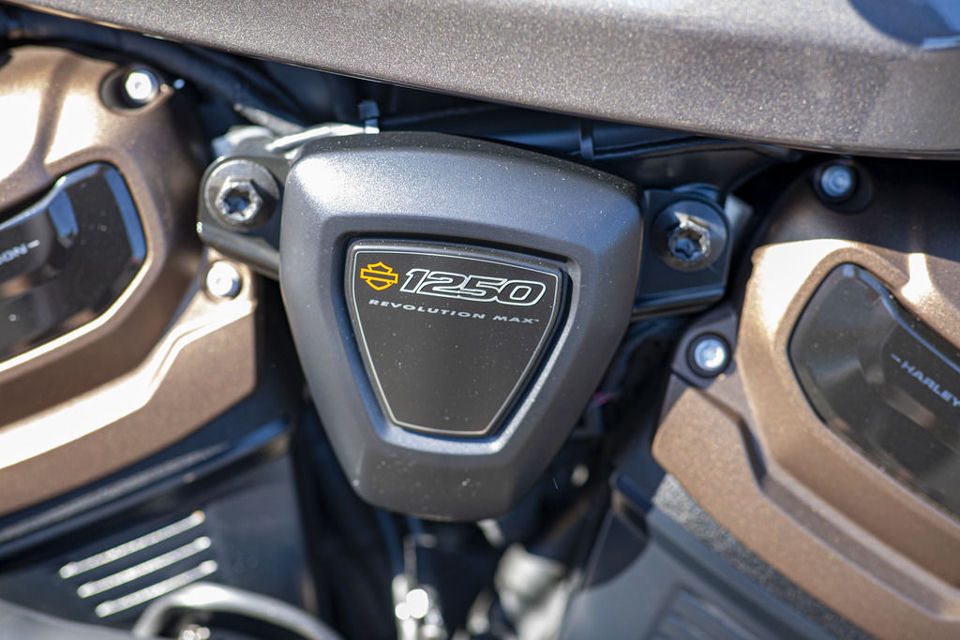

| Engine | Revolution® Max 1250T |
| Bore | 4.134 in. |
| Stroke | 2.846 in. |
| Displacement | 76.4 cu in |
| Compression Ratio | 12.0:1 |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust | 2-into-1-into-2; catalyst in muffler |
| Length | 89.4 in. |
|---|---|
| Seat Height, Laden | 28.9 in. |
| Ground Clearance | 3.5 in. |
| Rake (steering head) (deg) | 30 |
| Trail | 5.8 in. |
| Wheelbase | 59.8 in. |
| Tires, Front Specification | 160/70R17 73V |
| Tires, Rear Specification | 180/70R16 77V |
| Front Tire | Dunlop® Harley-Davidson Series, radial |
| Rear Tire | Dunlop® Harley-Davidson Series, radial |
| Fuel Capacity | 3.1 gal. |
| Oil Capacity (w/filter) | 4.75 qt. |
| Weight, As Shipped | 487 lb. |
| Weight, In Running Order | 502 lb. |
| Engine Torque Testing Method | J1349 |
|---|---|
| Engine Torque | 94 ft-lb |
| Engine Torque (rpm) | 6000 |
| Engine Power | 121 HP / 90 kW @ 7500 rpm |
| Lean Angle, Right (deg.) | 34 |
| Lean Angle, Left (deg.) | 34 |
| Fuel Economy: Combined City/Hwy | 49 mpg |
| Primary Drive | Gear, 49/89 ratio |
|---|---|
| Gear Ratios (overall) 1st | 12.21 |
| Gear Ratios (overall) 2nd | 9.022 |
| Gear Ratios (overall) 3rd | 6.994 |
| Gear Ratios (overall) 4th | 5.641 |
| Gear Ratios (overall) 5th | 4.731 |
| Gear Ratios (overall) 6th | 4.131 |
| Front Fork | 43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps. |
| Rear Shocks | Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability |
| Wheel Type, Front | Aluminum cast, satin black |
| Wheels Type, Rear | Aluminum cast, satin black |
| Brakes, Caliper Type | Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper |
| Lighting | All LED headlamp, low and high beam with signature position lighting. All LED Tail/Stop lamp with signature tail lighting |
|---|---|
| Gauges | 4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
| Features | Type: Color TFT | Screen Size: 4 in. | Headset Specifications (If Equipped): Bluetooth |
